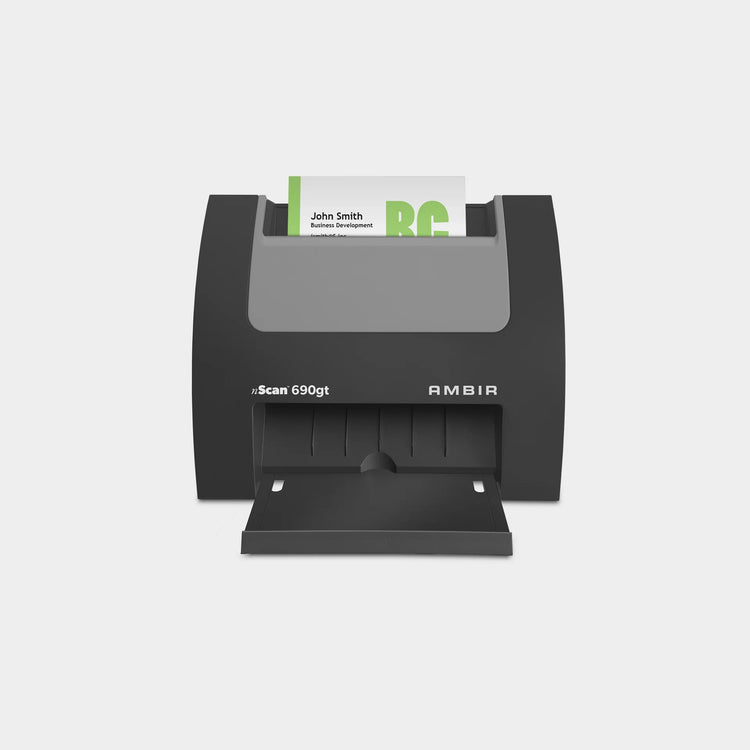

Creating a quick and smooth process with vertical card scanning. Fast, one second scanning for both sides of IDs and insurance cards. Beautiful image quality in color or grayscale. And it takes up even less desk space than your current scanner. The nScan 690gt is ideal for use in customer, patient or guest facing services. Its unique design is well suited for patient registration areas and use on mobile carts in healthcare.

• Scans both sides of ID in 1-2 seconds
• Compact design
• Includes AmbirScan scanning software & Advanced TWAIN driver
• 2-year warranty

Features

Optimal Card Handling.
 Patient IDs, insurance cards, driver’s licenses, Medicare cards and more. The nScan 690gt handles them all with ease so you can quickly and conveniently scan cards without worry.

Superior Performance. Advanced image processing captures clear, crisp images in seconds while remaining true to color. With clean and vibrant scans, you’ll be able to better utilize and store the information you collect.

Complete Solution. AmbirScan capture software makes scanning your documents even easier. Save scans as PDFs, TIFs or JPGs to your local computer or popular Cloud services such as: Box, Dropbox, Microsoft OneDrive, Evernote and Google Drive.

Professional-Grade Quality. Durable and reliable, this scanner is made to last and is perfect in customer, patient and guest facing healthcare services.

Ultra-Compact Footprint. The nScan 690gt takes up far less space than ADF or flatbed scanners. That makes it perfect for crowded desks and tight workspaces.

Front Facing Eject Mode. Cards and documents are scanned and ejected at the front of the scanner. No more reaching around the back of the scanner.

Broad Compatibility. The included TWAIN driver ensures compatibility with thousands of software applications and hardware systems.

Kensington™ lock slot. An industry standard Kensington lock slot lets you easily secure the scanner to your work surface to prevent theft and accidental drops.

Specifications

Scan Modes – 48-bit internal color, outputs 24-bit true color, 8-bit grayscale & 1-bit B&W


Scan Speed – Approximately 1-2 seconds to scan a standard sized ID card


Scan Area – Maximum 4.1″ x 10″ (104mm x 254mm)


Motor Speed – 3 inches per second @ 300 dpi color scanning; 0.9 inches per second @ 600 dpi color scanning


Media Thickness – up to 1.0mm
Interface – USB 2.0
Optical Resolution – up to 600dpi

2-Year Warranty

Dimensions (LxWxH) – 3.3″ x 6.6″ x 5.0″ (84mm x 168mm x 128mm)


Weight – 1.33 lbs (605 grams)


Image Sensor – 2 CIS modules (duplex scanning)


Calibration – Onboard memory storing calibration data (factory pre-calibrated)


Paper Sensor – Optical


Drivers – TWAIN 1.9; (Android, Linux & WinCE drivers may be developed upon request)

Security – Includes Kensington security slot


Safety Standards – FCC Class B, CE


Environmental Requirement – RoHS, WEEE


Supported Operating Systems – Windows 7/8/10/11


Model Number – DS690GT-AS

Support

When you buy Ambir, you get more than just a great scanner. It comes bundled with a warranty that includes limited parts & labor coverage and comprehensive U.S.-based phone & online chat support.

We can be reached Monday – Friday from 8:00 am – 5:00 pm CT USA / INT 1-630-530-5400 Option 3
