AMBIR scanners come with specialized scanning software that communicates directly with athenahealth's electronic health records system. Designed specifically for healthcare practices, it streamlines the capture and upload of patient documents, insurance cards, and ID cards. No need to purchase additional 3rd Party software.

Simply insert a card into the scanned and click scan, preview the image, click to accept, and you're done. Images go directly into the patient record, eliminating cumbersome desktop uploads. Scan documents directly from the Athena add document workflow. The software runs quietly in the background, so staff never need to manually launch it. Pre-configured scan profiles are optimized for insurance cards, IDs, and documents in color, black & white, or duplex mode.

Features

Save scans in Searchable PDF format* –
Documents can be searched by content for indexing, faster document retrieval and reuse of text.

Scans to Cloud* – Never worry about losing or accessing a document. Documents can be scanned directly into several popular Cloud services, such as Google Drive, Microsoft OneDrive, Evernote, DropBox and Box.

*Only supported on Windows Operating Systems

Preset Scan Buttons – We make scanning easy. AmbirScan ADF software provides 9 scan profile buttons, all of which can be easily configured to your scanning needs.

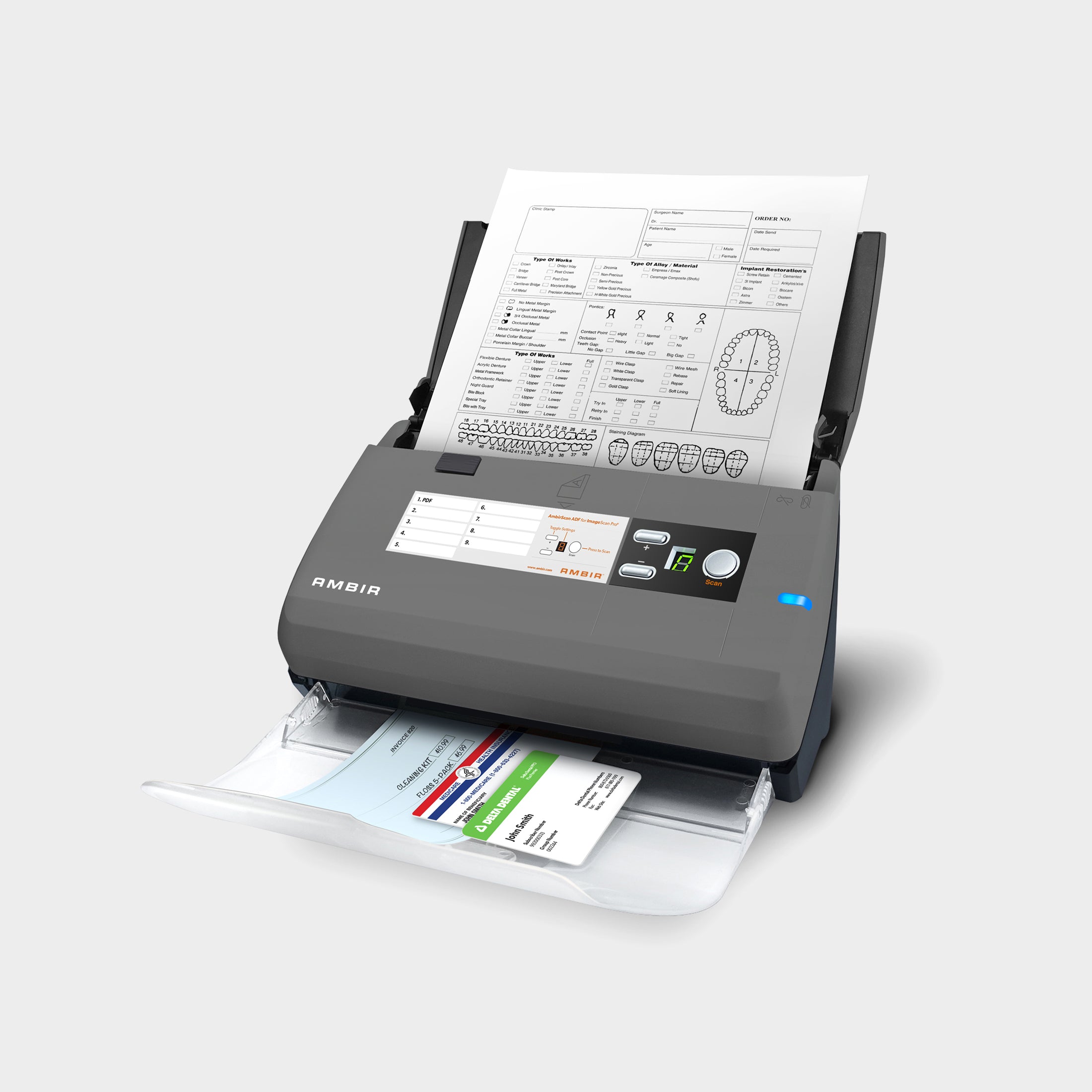

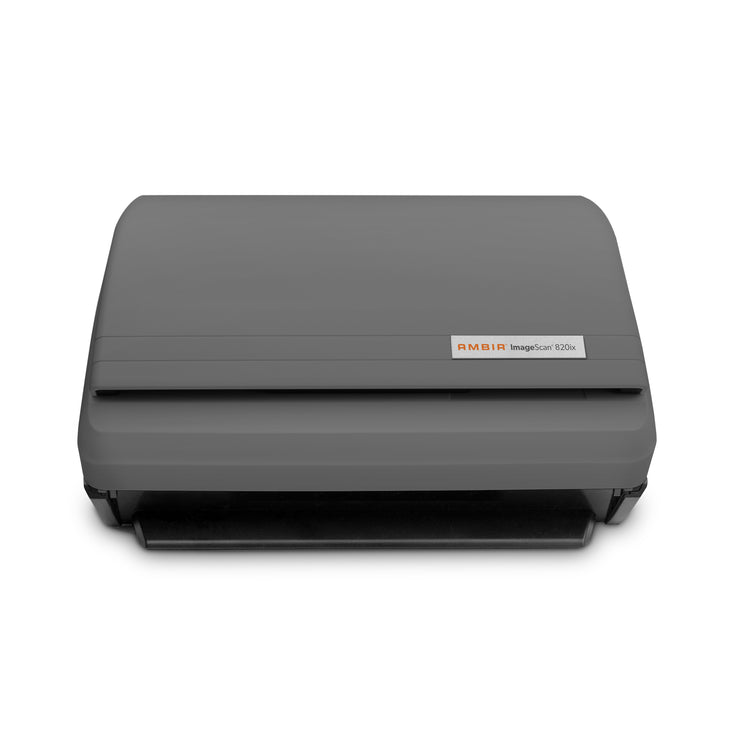

Compact Footprint – At about the size of a toaster, the ImageScan Pro 820ix takes up less space than a comparable ADF scanner.

Versatility – High-speed automatic feeder holds up to 50 pages for bulk scanning tasks in addition to business, identification & insurance cards.

Reliability – ImageScan Pro 820ix is trusted and proven for use in small practices, medical groups, urgent care clinics and hospitals.

High Speed Duplex Scanning – Save time by quickly scanning both sides of double-sided documents and cards in a single pass.

Professional Grade Quality – Durable and reliable enough for high-volume environments like patient registration, medical records and back office scanning areas.

Specifications

Supported Operating Systems – Windows 10/11, macOS 10.14 Mojave, macOS 10.15 Catalina

Scan Speed – Monochrome Speed Duplex @ 200 dpi / 20 ppm 40 ipm*, Color Speed Duplex @ 200 dpi / 20 ppm 40 ipm

Software Included – AmbirScan ADF

2-Year Warranty Drivers – TWAIN and WIA Compliant

Citrix Ready

Daily Duty Scans – Up to 3,000

Roller Lifetime (scans) – 100,000 – replacement roller may be easily installed by user

Pad Lifetime (scans) – 20,000 – replacement feeder pad may be easily installed by user

ADF Capacity – 50 Sheets (18 lb, 70 g/m²)
Note: Maximum ADF capacity varies, depending upon paper weight.

Power Adapter – 1 AC Power Adapter, (Input 0.6A, Output 0.75A), Replacement Part Number: RP800-AC

Scan Area – 8.5” x 200” (216mm x 5080mm), 0.52” x 0.52” (13.2mm x 13.2mm)

Optical Resolution – 600 x 600 dpi

Scan Modes – Grayscale, Color, Black & White

Dimensions – 10.36″ x 5.19″ x 5.83″ (263mm x 132mm x 148mm)

Weight – 4.2 lbs (2086.5g)

Interface – USB 2.0

USB Cable Length and Type – 6ft/1.8m USB A-B

Safety Standards – FCC Class B, CE

Environmental Requirement – RoHS, WEEE

*Scan speed will vary based on alternate settings and type of material being scanned Bundled software application(s) and/or version numbers of software applications are subject to change without notice.

Support

When you buy Ambir, you get more than just a great scanner. It comes bundled with a warranty that includes limited parts & labor coverage and comprehensive U.S.-based phone & online chat support.

We can be reached M – F from 8:00 am – 5:00 pm CT USA / INT 1-630-530-5400 Option 3
