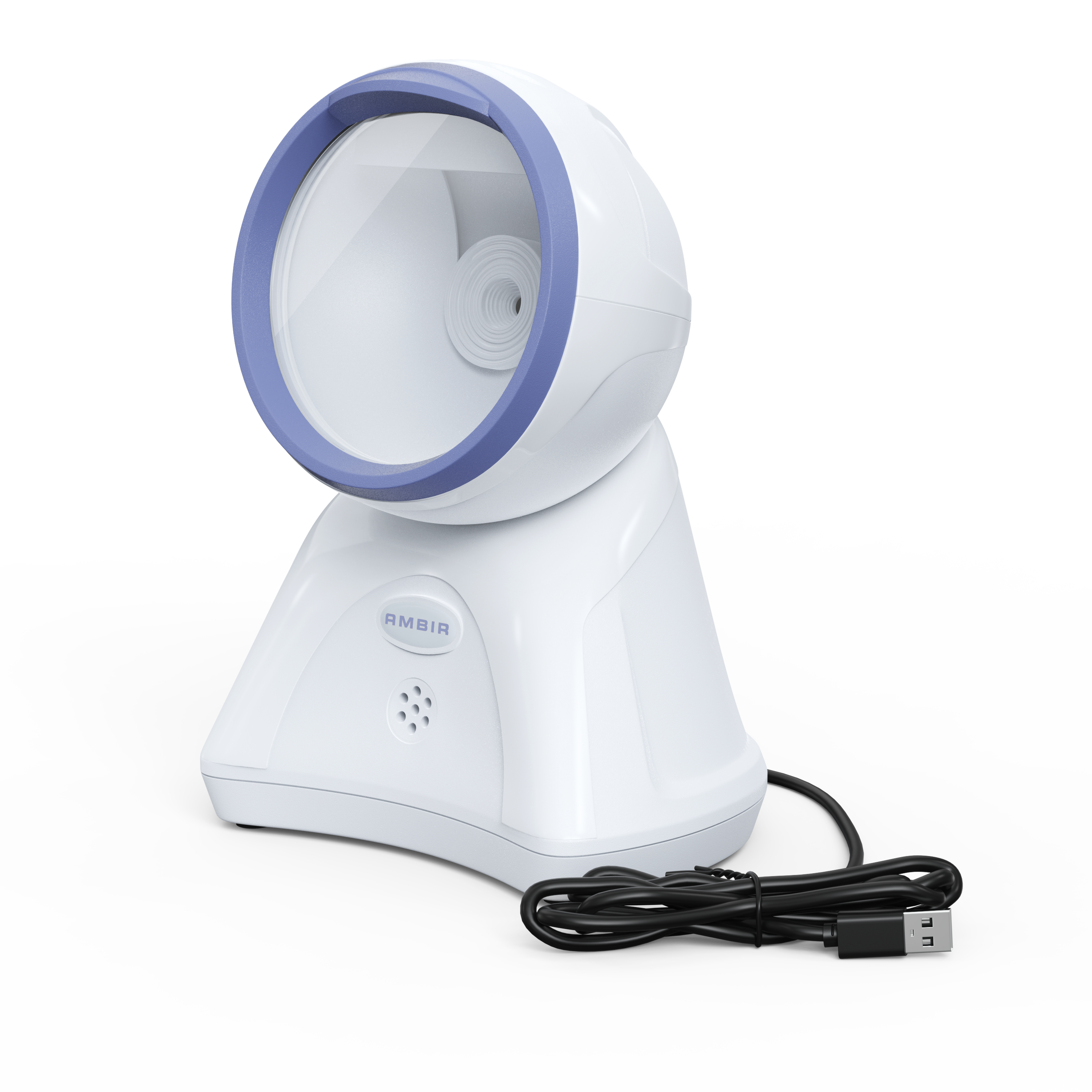

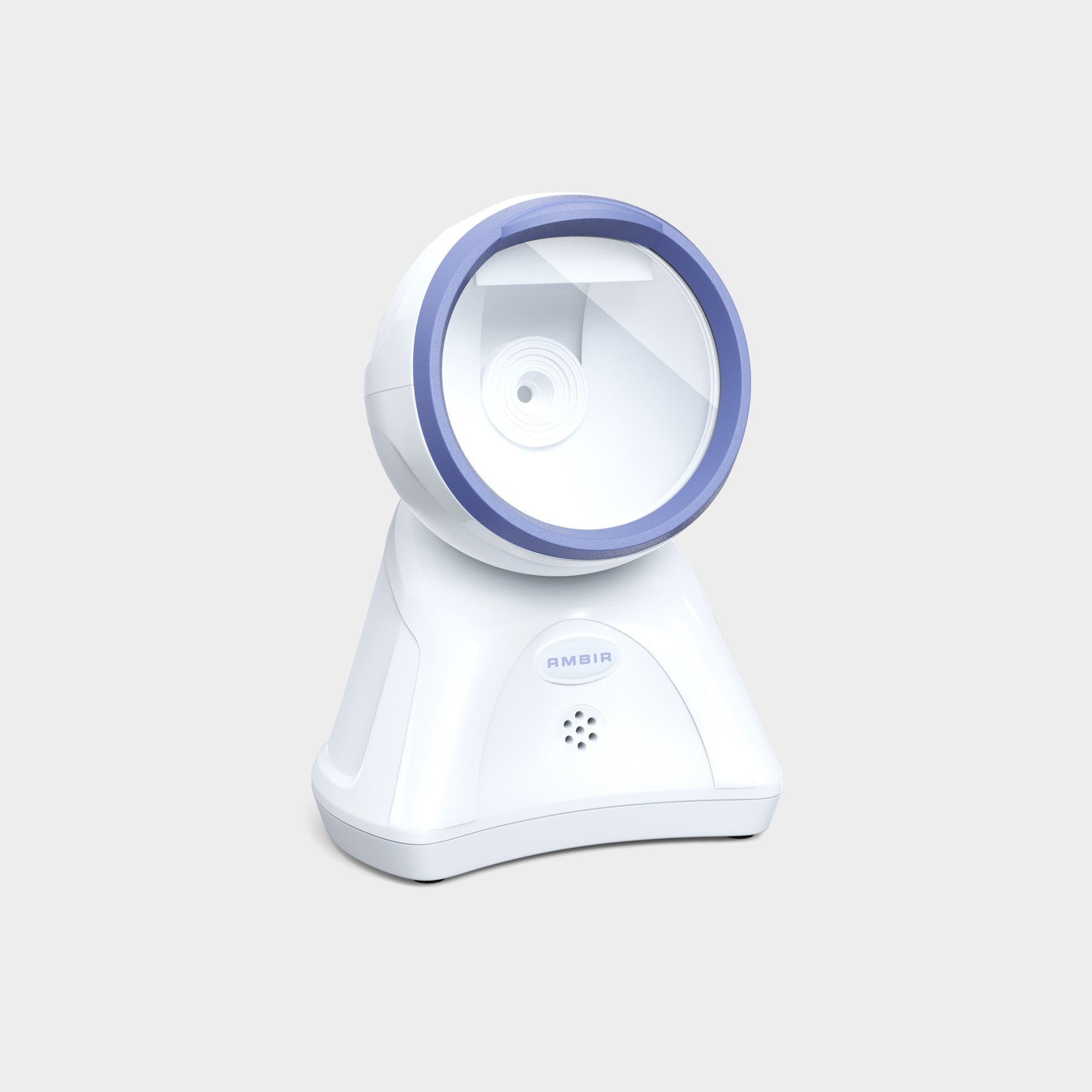

The DB100 is a omni-directional, hands-free, 1D, 2D, and QR barcode scanner for Windows, Mac, Linux, and Android. Durable and rugged, the DB100 is engineered to operate in the most demanding environments and requires only a USB connection for installation and use. With its multiple OS support, the Ambir DB100 is a great choice for your current and future barcode scanning needs.

• Red LED light source
• Available in multiple colors
• Image sensor rated at 640×480 pixels
• Robust decoding capabilities
• Ability to turn off sound
• Plug & play capabilities with no driver updates or downloads required.
• Multi-Operating System Support, including Mac, Windows, Android, and Linux.
• Free lifetime access to Ambir’s 100% US-based customer support team
• 2-year warranty
• The barcode scanner is fully compatible with Ambir Thermal Label Printers.

Features

Top-tier Versatility in Scanning Multiple Types of Barcodes – The Ambir DB100 Omni-directional Desktop USB Barcode scanner is engineered for high-demand/high-volume desktop environments that require constant scanning of QR Codes and 1D, 2D, and PDF417 barcodes.

Quality Decoding Capability – The Ambir DB100 Omni-directional Desktop USB 2D Barcode Reader offers brilliant decoding capabilities, allowing it to scan barcodes from mobile device screens along with physical media like paper, packaging, and various labels. Delivering speed and versatility, the BD100 can handle damaged, wrinkled, or badly printed barcodes bringing no slow-down to your scanning needs.

Reliable Plug and Play Features – With the Ambir DB100 Omni-directional Desktop USB Barcode Scanner, you don’t need to install drivers, deal with software updates and downloads, or use network service to access the barcode scanner. You only need to connect the scanner via a single USB cable, and you’re ready to go.

Great Flexibility – Aside from the ease USB connectivity gives, this barcode scanner provides superb flexibility for customers and users with Mac, Windows, Android, and Linux devices. They get the freedom to move between platforms as the needs of their business change.

Compatibility With Industry Standards – When you invest in an Ambir DB100 Desktop Barcode Scanner, you’re getting a device compatible with industry standards. Windows, Mac, Linux, and Android OS. Support for: 1D,2D, and PDF417 barcodes along with QR codes.

Speed – The Ambir DB100 Omni-directional Hands-Free Desktop USB Omni-directional 1D, 2D, QR Barcode Scanner is fast with great precision, delivering a decoding speed of 120 FPS/s and 300,000 pixels global shutter.

Great At Reading LCD Displays (Mobile devices) – As more functions and interactions move to mobile applications and devices, the Ambir DB100 has you covered. The red LED light source supports the reading of 1D, 2D, and PDF417 barcodes on mobile devices like phones and tablets and also supports QR code reading on these devices.

Advanced Variety of Barcodes – An advanced variety of barcodes is one of the benefits of getting the Ambir DB100 Omni-directional Desktop USB 2D Barcode Reader. It has a wide variety of readable barcodes such as 1D: All standard 1D codes, 2D: Aztec Code, Data Matrix, MaxiCode, QRCode, HANXIN, and Micro QR Code. There is also allowance for Stack code: GS1 DataBar Expanded Stacked, GS1 DataBar Composite, GS1 DataBar Stacked, GS1 DataBar Stacked Omnidirectional, MicroPDF417, and PDF417.

Physical Characteristics

Colors Available – Black / Orange, White / Blue

Dimensions L*W*H) – 4.4 x 4 x 6.5” – 112 x 102 x 165 mm

Weight – 0.7 lbs – 11.2 oz.

Cable Length – 5.2’

Electrical Parameter – USB Powered

Specifications

Supported Operating Systems – Windows 7/8/10/11, Mac, Linux, Android

Light Source – LED White light

Image Sensor – 640*480 pixels

Resolution(Maximum) – 0.102mm / 4mils

Print contrast ratio(Minimum) – ≥15%

Reading Angle – Pitch: 0-360°; Roll(Tilt): ±60°; Skew (Yaw): ±60°

Decoding Capability

1D: All standard 1D codes, including GS1 DataBar™ linear code, can be automatically distinguished and decoded.

2D: Aztec Code; Data Matrix; MaxiCode; QRCode; HANXIN; MicroQR Code

Stack code: GS1 DataBar Expanded Stacked; GS1 DataBar Stacked; GS1 DataBar Stacked Omnidirectional; GS1 DataBar Composite; MicroPDF417; PDF417

Reading Indicators

LED Light & Buzzer (adjustable tone and volume）

Precision Barcode  Depth of Filed

3.34mil CODE 128  10mm—60mm

5mil  CODE128  5mm—90mm

3.34mil EAN-13  10mm—55mm

5mil  EAN-13  5mm—85mm

13.34mil EAN-13  20mm—190mm

5mil  PDF417  5mm—75mm

10mil PDF417  5mm—190mm

15mil PDF417  10mm—200mm

10mil DM   5mm—100mm

20mil DM   5mm—210mm

(The minimum depth of field is determined by the barcode length and scanning angle. It depends on the print resolution, contrast, and ambient light.)
