About
Versatile, durable and efficient, the nScan 1060 is the preferred piece of equipment to handle most facility scanning needs. This scanner comes equipped with a TWAIN Driver, AmbirScan ADF and can scan various documents in color, such as ids, passports and traditional paper.
This scanner is perfect for busy work environments with a 60 PPM scanning speed and superior paper handling. A 3-year warranty guarantees you’ll have a reliable scanner that’s in it for the long haul.
Versatile and Powerful.
Instead of buying multiple scanners for varying documents, save money and get a reliable scanner that does IDs, passports, and documents all in one.
Features

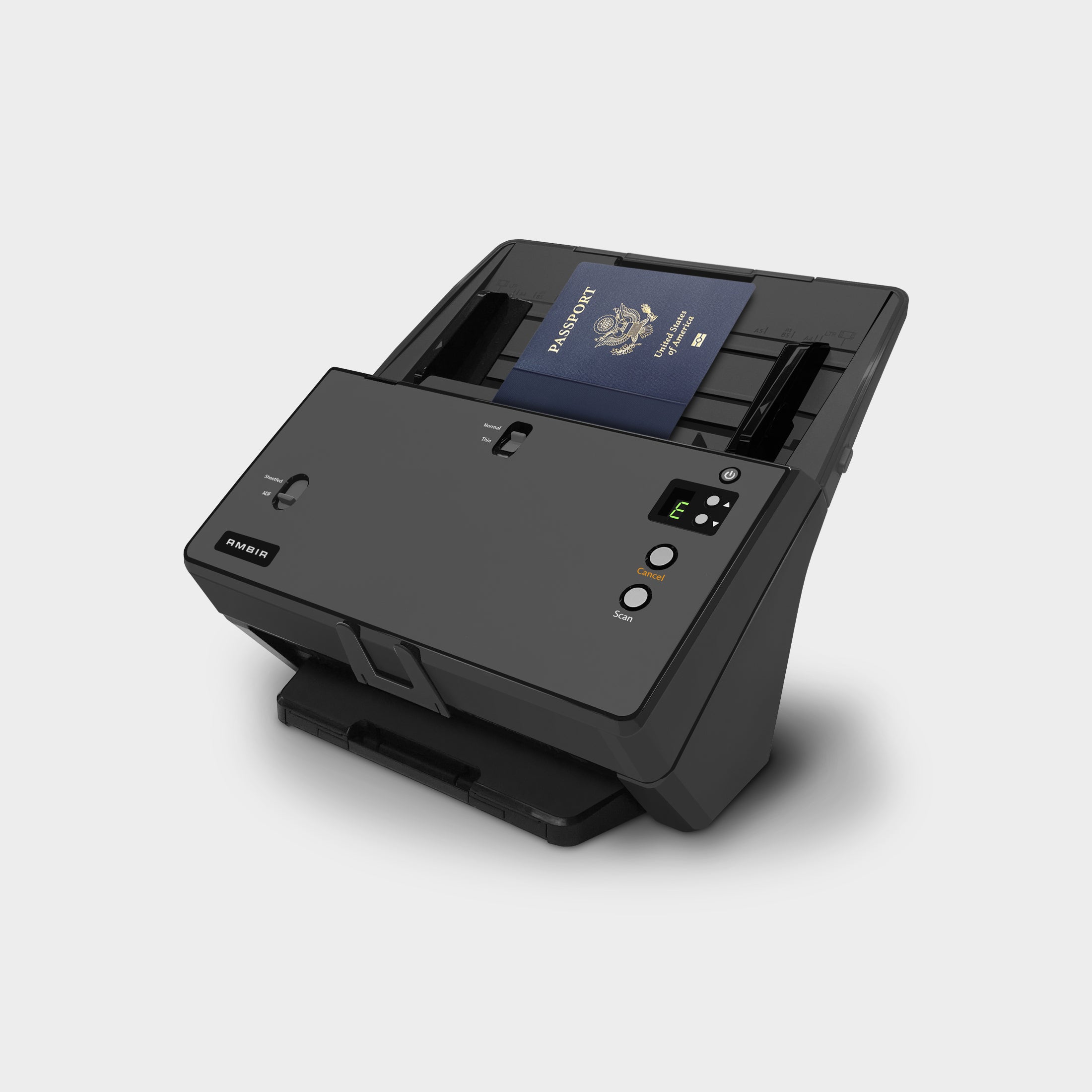

High-speed passport scanning.
Enable Sheetfed mode on our ADF scanner to scan through Passports and other thick documents. When you’re ready to go back to scanner paper, you can quickly switch back to ADF mode.
9 customizable profiles.
Customize your scanner’s buttons to a specific need for quick, easy access.
High Speed Duplex Scanning.
Save time by quickly scanning both sides of double-sided documents and cards in a single pass.
Durable and reliable enough for high-volume environments like customer registration, medical records and back office scanning areas.
Specifications
Supported Operating Systems – Windows 7/8/10/11
Scan Speed – 60 ppm/ 120 ipm (Grayscale/B&W mode, 200 dpi, A4 Portrait) 60 ppm/ 120 ipm | (Grayscale/B&W mode, 300 dpi, A4 Portrait) 60 ppm/ 120 ipm | (Color mode, 200 dpi, A4 Portrait) 60 ppm/ 120 ipm | (Color mode, 300 dpi, A4 Portrait)
Software Included – AmbirScan ADF
3-Year Warranty
Drivers – TWAIN Compliant
Daily Duty Scans – Up to 8,000
Roller Lifetime (scans) – 300,000 – replacement roller may be easily installed by user
Pad Lifetime (scans) – 100,000 – replacement feeder pad may be easily installed by user
ADF Capacity – 1. 100 sheets (A4/ Letter, 70 g/㎡ or 18 Lbs) 2. 30 sheets (Business Cards, landscape feeding) 3. Plastic Card, Max. thickness under 1.2 mm landscape feeding
Power Supply – 24 Vdc/ 1.25 A
Scan Area – Max: 216 x 5080 mm (8.5” x 200”) Min: 13.2 x 13.2 mm (0.52” x 0.52”)
Optical Resolution – 600 dpi
Scan Modes – Color: 48-bit input, 24-bit output | Grayscale: 16-bit input, 8-bit output | B/W: 1-bit
Dimensions – 319.9 x 298.2 x 236.6 mm (12.59″ x 11.74″ x 9.32″)
Weight – 4.1 Kgs (9.04 Lbs)
Interface – USB 3.0 x 1, USB 3.0 (Host) x 1
Safety Standards – FCC Class B, CE
Environmental Requirement – RoHS, WEEE
*Scan speed will vary based on alternate settings and type of material being scanned
Bundled software application(s) and/or version numbers of software applications are subject to change without notice
Support
Visit https://ambir.combackup/adf-ath/ for drivers and information how to set-up your nScan 1060 scanner for Athena.
When you buy Ambir, you get more than just a great scanner. It comes bundled with a warranty that includes limited parts & labor coverage and comprehensive U.S.-based phone & online chat support.
We can be reached M – F from 8:00 am – 5:00 pm CT
USA / INT
Versatile, durable and efficient, the nScan 1060 is the preferred piece of equipment to handle most facility scanning needs. This scanner comes equipped with a TWAIN Driver, AmbirScan ADF and can scan various documents in color, such as ids, passports and traditional paper.
This scanner is perfect for busy work environments with a 60 PPM scanning speed and superior paper handling. A 3-year warranty guarantees you’ll have a reliable scanner that’s in it for the long haul.
Versatile and Powerful.
Instead of buying multiple scanners for varying documents, save money and get a reliable scanner that does IDs, passports, and documents all in one.
Features
High-speed passport scanning.
Enable Sheetfed mode on our ADF scanner to scan through Passports and other thick documents. When you’re ready to go back to scanner paper, you can quickly switch back to ADF mode.
9 customizable profiles.
Customize your scanner’s buttons to a specific need for quick, easy access.
High Speed Duplex Scanning.
Save time by quickly scanning both sides of double-sided documents and cards in a single pass.
Durable and reliable enough for high-volume environments like customer registration, medical records and back office scanning areas.
Specifications
Supported Operating Systems – Windows 7/8/10/11
Scan Speed – 60 ppm/ 120 ipm (Grayscale/B&W mode, 200 dpi, A4 Portrait) 60 ppm/ 120 ipm | (Grayscale/B&W mode, 300 dpi, A4 Portrait) 60 ppm/ 120 ipm | (Color mode, 200 dpi, A4 Portrait) 60 ppm/ 120 ipm | (Color mode, 300 dpi, A4 Portrait)
Software Included – AmbirScan ADF
3-Year Warranty
Drivers – TWAIN Compliant
Daily Duty Scans – Up to 8,000
Roller Lifetime (scans) – 300,000 – replacement roller may be easily installed by user
Pad Lifetime (scans) – 100,000 – replacement feeder pad may be easily installed by user
ADF Capacity – 1. 100 sheets (A4/ Letter, 70 g/㎡ or 18 Lbs) 2. 30 sheets (Business Cards, landscape feeding) 3. Plastic Card, Max. thickness under 1.2 mm landscape feeding
Power Supply – 24 Vdc/ 1.25 A
Scan Area – Max: 216 x 5080 mm (8.5” x 200”) Min: 13.2 x 13.2 mm (0.52” x 0.52”)
Optical Resolution – 600 dpi
Scan Modes – Color: 48-bit input, 24-bit output | Grayscale: 16-bit input, 8-bit output | B/W: 1-bit
Dimensions – 319.9 x 298.2 x 236.6 mm (12.59″ x 11.74″ x 9.32″)
Weight – 4.1 Kgs (9.04 Lbs)
Interface – USB 3.0 x 1, USB 3.0 (Host) x 1
Safety Standards – FCC Class B, CE
Environmental Requirement – RoHS, WEEE
*Scan speed will vary based on alternate settings and type of material being scanned
Bundled software application(s) and/or version numbers of software applications are subject to change without notice
Support
Visit https://ambir.combackup/adf-ath/ for drivers and information how to set-up your nScan 1060 scanner for Athena.
When you buy Ambir, you get more than just a great scanner. It comes bundled with a warranty that includes limited parts & labor coverage and comprehensive U.S.-based phone & online chat support.
We can be reached M – F from 8:00 am – 5:00 pm CT
USA / INT
nScan 1060 for AthenaHealth (DS1060-ATH)
- Regular price
- $799.00
- Sale price
- $799.00
- Regular price
-
Translation missing: en.products.product.sku:DS1060-ATH
